Iseelink RSTP MSTP Industrial Managed Switch 4RJ45 4SFP 1000 Mbps POE switch

Product Categories
Shenzhen iseelink Communication Technology Co., Ltd.
Contact Now

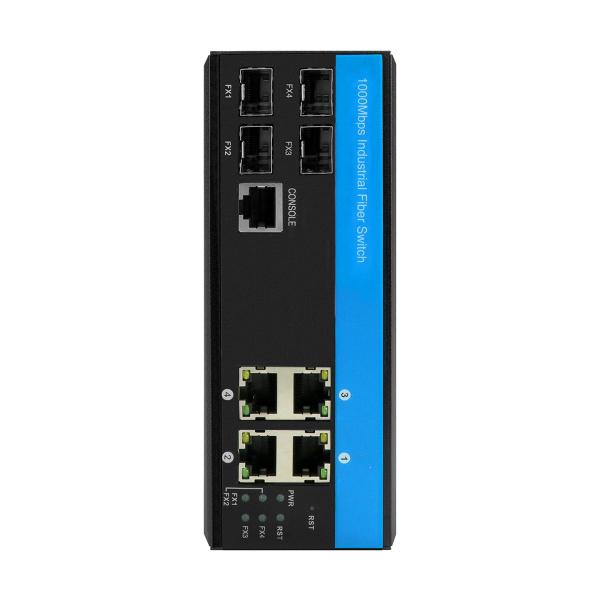

Iseelink RSTP MSTP Industrial Managed Switch 4RJ45 4SFP 1000 Mbps POE switch

  • 1
  • 2
  • 3

Brand Name : Iseelink

Model Number : IM-FP444GW

Certification : CE, ROHS, FCC

Place of Origin : China

MOQ : 1PC

Price : negotiable

Payment Terms : T/T, Paypal

Supply Ability : 3000pcs/month

Delivery Time : 4-7 working days

Packaging Details : netural packing

Product name : Managed Industrial POE Fiber Switch

Dimension : 158 x 114.8 x 60mm

Installation : Din-rail

Power supply : 48v DC redundant power

Communication Mode : Full-Duplex & Half-Duplex

Surge protection : ±4KV

Contact Now

Gigabit managed Industrial POE Fiber Switch

Introduction of Industrial Fiber Switch

IM-FP444GW series is the 10/100/1000 Mbps managed industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP44 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Specification of managed industrial fiber switch

Product Name

10/100/1000Mbps Managed Industrial POE Fiber Switch (4F+4TP)
Model No.

IM-FP444GW
Port

4 x 1000Mpbs SFP port

SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Standard

IEEE 802.3,IEEE 802.3u ,IEEE 802.3I,IEEE 802.3z,IEEE 802.3at

Single-mode

20, 40,60, 80,100,120Km,optional
Jumbo Frame 9.6KB

Multi-mode

550m
Switching features

Transmission mode:storage and forward

System bandwidth:40Gbps (non-traffic jam)
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs Power, network, fiber
Power supply

POE power supply input voltage: 48V (max 52V),

Single PoE power supply output power: 15.4W (port 1~4)

(802.3at standards required special instructions)
Environment Working Temp:-40°～ 85°C ; Storage Temp:-40°～ 85°C;Working humidity:10%～90%, non-condensing; Storage humidity:10%～95%, non-condensing

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Safety CE Mark ,commercial ; CE/LVD EN60950
Mechanical information

Shell:Corrugated metal shell; Safety class:IP40;

Dimension:158 x 114.8 x 60mm;

Mounting method:Din-rail mounting
Warranty Replacement within 1year; 3 years repairing

Application

Iseelink RSTP MSTP Industrial Managed Switch 4RJ45 4SFP 1000 Mbps POE switch

Certification

Iseelink RSTP MSTP Industrial Managed Switch 4RJ45 4SFP 1000 Mbps POE switchIseelink RSTP MSTP Industrial Managed Switch 4RJ45 4SFP 1000 Mbps POE switchIseelink RSTP MSTP Industrial Managed Switch 4RJ45 4SFP 1000 Mbps POE switchIseelink RSTP MSTP Industrial Managed Switch 4RJ45 4SFP 1000 Mbps POE switch

Why choose us?

1. All products are under strict quality control and well tested for 3 times

before shipment;

2. According to the survey, the repair rate of our products is 3%~ 5%,

which is the lowest in the peer.

3. Any problem, pls feel free to contact us.

4. The warrany of the commercial products is 1 years while the industrial products

is 3 years.
