40ch AWG Array DCI DWDM Device Waveguide Grating System

  • 1
  • 2

Brand Name : Iseelink

Model Number : OSP3800-40CH

Certification : CE, ROHS

Place of Origin : China

MOQ : 1pc

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Delivery Time : 3-5days

Channel Wavelength : ITU Grid

Channel Spacing : 100GHz

Directivity : >50dB

Return Loss : >45dB

Contact Now

40 AWG Wavelengths Multiplexing/Demultiplexing Card for Telecom/Datacenter/5G Network

AWG photosynthetic wave solver is part of the OSP3800 DWDM system. AWG photosynthetic wave dissolver can be assembled on 2U and 6U management sub-frames. Its main function is to synthesize multiple single-channel optical input signals with a specific wavelength into an optical signal with a 100GHz wavelength interval.


Product Features

  • Super capacity: single card adopts 40 wave/48 wave compatible design;
  • Easy maintenance and replacement: the board adopts a modular design and supports a hot plug
  • High isolation: adjacent isolation ≥ 25dB, non-adjacent isolation ≥ 35dB
  • Ultra-low insertion loss: insertion loss ≤ 5dB, typical value 4.5dB
  • Unified insertion loss: 48-wave AWG channel insertion loss difference <0.6dB


Product Diagram

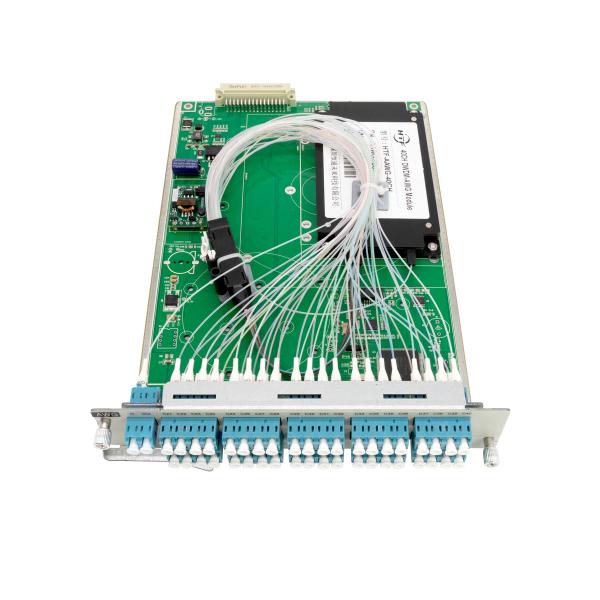

40ch AWG Array DCI DWDM Device Waveguide Grating System

Product Application

  • Telecom
  • Datacenter
  • 5G Network
  • Long Haul Network

Functional Structure

40ch AWG Array DCI DWDM Device Waveguide Grating System

Product Specification

Function Note
Optical channel number 40 channel, support C band (C_EVEN), (C_ODD)
Channel spacing 0.8nm (100GHz)
Channel frequency ±12.5 GHz
Wavelength accuracy ≤0.05nm
Channel insertion loss ≤5.5dB
-1dB bandwidth ≤0.34dB
-3dB bandwidth ≤0.51dB
Adjacent channel isolation ratio ≥25dB
Non-adjacent channel isolation ratio ≥30dB
Total isolation ≥23dB
Flatness ≤1.5dB
Return loss ≥45dB
Directivity ≥50dB
Occupied slot number Support OSP3800 series chassis,occupy 2 slot,(1U)
Optical interface LC/UPC
Extend function Support C band(C_EVEN)40 channel and(C_ODD)40 channel through Interleaver extend to 80 channel
Max power consumption 3W
MTBF ＞100000 hours
