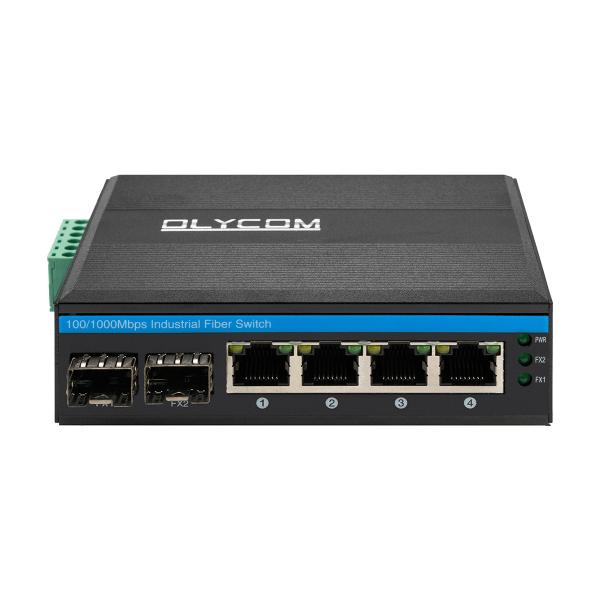

2SFP 4RJ45 Mini Hardened Ethernet Switch IP40 Industrial Managed Fiber Switch For Outdoor

Brand Name : Iseelink

Model Number : IM-FS240GM

Certification : CE, ROHS, FCC

Place of Origin : China

MOQ : 1PC

Price : negotiable

Payment Terms : T/T, Paypal

Supply Ability : 3000pcs/month

Delivery Time : 4-7 working days

Packaging Details : netural packing

Product name : Managed Industrial Fiber Switch

Support VLAN : 802.1Q VLAN (4K), Port-based VLAN

Jumbo frame processing : 9k

Report buffer : 64K

Multicast protocol : IGMPv1/2/3 Snooping

DHCP management : support DHCP Snooping, option 82

Exchange capacity : 12Gbps

Contact Now

Managed Industrial Fiber Switch

Introduction

Introducing the IM-FS240GM series - a high-performance industrial fiber switch that combines impressive speed with impressive durability. With an operating temperature range of -40 ℃ to +85 ℃ and IP40 protection degree, it's built to withstand even the harshest environments. Not only does it support wide voltage dual power input, web management, and DIN rail installation, but it has also passed dangerous environmental certification and complies with FCC and CE standards. By seamlessly integrating with your existing network infrastructure, our switch can significantly improve communication capacity and expand bandwidth. Plus, with its intuitive and cost-effective management solutions, you can streamline system management with ease. Say goodbye to the hassle of costly operation and maintenance - upgrade your network with our IM-FS240GM series today!

Product Features of managed hardened switch

  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard,
  • half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • A store-and-forward switching mechanism
  • Operating environment temperature:-40 ° ~85 ° c
  • Support bus/star topology, ring structure, support ITU-T G.8032/Y.1344 ERPS
  • Support SNMPv1, v2, v3, Web management, support user login password protection and other device configuration methods

Specification of managed industrial fiber switch

Product Name 10/100/1000Mbps Managed Industrial Fiber Switch (2F+4TP)
Model No. IM-FS240GM
Port

2 x 1000Mpbs SFP port

SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 4 x 10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.1Q VLAN Tagging, IEEE 802.1p CoS, IEEE 802.1X Authentication, IEEE 802.3ad Link Aggregation Protocol: IGMPv1/v2, SNMPv1/v2c/v3, DHCP ClientTFTP, HTTP, HTTPS, Telnet, Syslog SSH, SNMP Inform, DDM, Ping/tracert detection, MIB library: MIB-II, Ethernet-Like MIB
Managed

☆Support VLAN: 802.1Q VLAN (4K), Port-based VLAN

☆ Jumbo frame processing: 9k

☆ Report buffer: 64K

☆ Broadcast storm suppression: support broadcast, multicast, unknown unicast suppression

☆ Flow control: Adopt IEEE802.3x negotiation flow control, CAR function, speed limit step size is 1Kb

☆ Ring network function: support ITU-T G.8032 /Y.1344 ERPS

☆ Multicast protocol: IGMPv1/2/3 Snooping

☆ Port management: support port isolation and port aggregation

☆ DHCP management: support DHCP Snooping, option 82

☆ QoS mechanism: 802.1p; support port default priority marking, each port has at least 4 queues with different priorities

☆ Security: login access authentication, login password modification, MAC address filtering, support dynamic or static MAC address learning / support ARP learning function off and on, ARP message speed limit / support IP+MAC+ port manual and automatic scanning binding Set IEEE 802.1x (Port based, MAC based), can transparently transmit 802.1x data packets/port loop detection
Switching Features

Exchange capacity: 12Gbps Packet forwarding rate: 8.928Mpps

MAC address table: 2K Swap delay: <5μs

Transmission method: store and forward
Power supply

Input voltage:DC 9-52V
Reverse connection

support
Overload protection

support
Redundant protection

support

Application

2SFP 4RJ45 Mini Hardened Ethernet Switch IP40 Industrial Managed Fiber Switch For Outdoor

Certification

2SFP 4RJ45 Mini Hardened Ethernet Switch IP40 Industrial Managed Fiber Switch For Outdoor2SFP 4RJ45 Mini Hardened Ethernet Switch IP40 Industrial Managed Fiber Switch For Outdoor2SFP 4RJ45 Mini Hardened Ethernet Switch IP40 Industrial Managed Fiber Switch For Outdoor2SFP 4RJ45 Mini Hardened Ethernet Switch IP40 Industrial Managed Fiber Switch For Outdoor

2SFP 4RJ45 Mini Hardened Ethernet Switch IP40 Industrial Managed Fiber Switch For Outdoor

Our Advantage:

The IM-FS240GM series is a powerful 10/100/1000 Mbps industrial fiber switch designed to operate in extreme conditions, with an impressive operating temperature range of -40 ℃ to +85 ℃. With its wide voltage dual power input and support for web management, this switch is built to meet the highest IP40 protection degree and EMC industrial grade requirements, making it the ideal solution for tough industrial environments. Featuring DIN rail installation and passing dangerous environmental certification, this switch is fully compliant with FCC and CE standards. By allowing for quick communication capacity improvements and expanded bandwidth on existing network infrastructures, this switch offers a low-cost yet highly effective solution for system management and operation, with simple and easy operation and maintenance.
