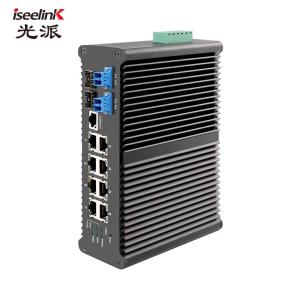

10/100/1000Mbps Managed 10port Industrial Fiber Bypass Switch For Protection

  • 1
  • 2

Brand Name : Iseelink

Model Number : IM-FBS280GW

Certification : CE, ROHS, FCC

Place of Origin : China

MOQ : 1PC

Price : negotiable

Payment Terms : T/T, Paypal

Supply Ability : 3000pcs/month

Delivery Time : 4-7 working days

Packaging Details : netural packing

Product name : Managed Industrial Fiber Bypass Switch

Dimension : 158 x 114.8 x 60mm

Power input : 48to 57v DC redundant power

Products Status : Stock

Warranty : 3 years

PoE Output Power : 90W

Contact Now

Managed 10port Industrial Fiber Bypass Switch for protection

Introduction of Managed industrial bypass switch

IM-FBS280GW is a 10/100/1000 Mbps industrial fiber bypass switch supporting following features

  • Wide voltage dual power input
  • Web GUI management
  • Din rail installation
  • FCC and CE certification

And as an indispensable part of optical communication&protection system, the fiber bypass is highly reliable and stable for different optical path needs such as

  • Metropolitan area network (MAN)
  • Dynamic configuration of add/drop multiplexing
  • System monitoring
  • Laboratory research and development

Meantime, the fiber pass switch characterizes

  • Low Insertion Loss
  • Wide Wavelength Range
  • Low Channel Crosstalk

Product Features of managed hardened switch

  • 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
  • 2 x2.5G SFP fiber ports, 2 x Bypass ports
  • 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • A store-and-forward switching mechanism
  • Operating environment temperature:-40 ° ~85 ° c
  • Support cable diagnosis and can locate the fault point
  • Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption
  • Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
  • Support Qos, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression ,differentiated services
  • Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR
  • Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
  • Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
  • Support IGMP agent report, MLD snooping
  • Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
  • Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
  • Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
  • Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
  • Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
  • Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.​

Specification of managed industrial fiber switch

Product Name 10/100/1000Mbps Managed Industrial Fiber Bypass Switch (2F+8TP)
Model No. IM-FBS280GW
Port

2 x 2.5G SFP port

SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Standard IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
VLAND ID 4096
Jumbo Frame 9.6KB
MAC Address Table 8K
Switching features

Transmission mode:storage and forward

System bandwidth:58Gbps (non-traffic jam)
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs Power, network, fiber, bypass
Power supply

Input voltage: DC 9-52V; No-load power: 5W;

Reverse connection: support
Environment Working Temp:-40°～ 85°C ; Storage Temp:-40°～ 85°C;Working humidity:10%～90%, non-condensing; Storage humidity:10%～95%, non-condensing

Application

10/100/1000Mbps Managed 10port Industrial Fiber Bypass Switch For Protection

Certification

10/100/1000Mbps Managed 10port Industrial Fiber Bypass Switch For Protection10/100/1000Mbps Managed 10port Industrial Fiber Bypass Switch For Protection10/100/1000Mbps Managed 10port Industrial Fiber Bypass Switch For Protection10/100/1000Mbps Managed 10port Industrial Fiber Bypass Switch For Protection

Packing List:

When using the product for the first time, please first check whether the package is complete and whether the accessories are complete!

  • 1 × Main equipment
  • 1 × Instruction manual
  • 1 × Warranty card
  • 1× Console cable

Note: Fiber transceiver and power adapter are NOT included in the package, you need to purchase individually.
